Your questions answered

Electric car battery recycling: all you need to know

How recyclable are the batteries from electric cars? The situation isn't perfect, but a number of solutions are being worked on

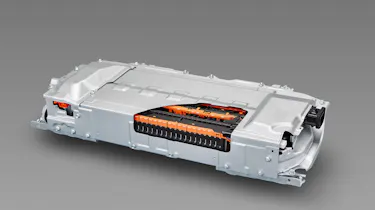

Battery

Electric cars are taking over at some pace, and while it will be some time yet before most people are driving them, they make up a significant chunk of the new car market already. The process of scrapping and recycling normal combustion-engined cars is well-established, but the same can’t be said for dealing with expired electric car batteries. However, things are developing quickly and there are already solutions for recycling and reusing battery packs.

Advertisement - Article continues below

The upcoming ban on the sale of new petrol and diesel cars from 2030 means that lithium-ion batteries will soon become as common as an old engine or gearbox that’s come to the end of its life. At the moment, it’s a bit easier to get rid of those items safely and efficiently, but that’s only because we’ve been doing it for so long.

Just like engines, lithium-ion batteries have a lifespan. It can be longer or shorter depending on how they are used, but they generally last for between 100,000 and 200,000 miles, according to the National Grid’s website. That can be more than a petrol or diesel engine, but the fact is that nothing lasts forever and once the battery isn’t able to provide a decent level of power any more, it needs to be recycled in some way.

Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

The good news is that batteries can be recycled really efficiently with the right tools. According to lead engineer of Warwick Manufacturing Group, Anwar Sattar, “technically, over 90% of the cell can be recovered but since recycling involves the reuse of the recovered material, it becomes a commercial activity and companies will only recycle those parts that give them a positive financial return.”

Advertisement - Article continues below

In the EU, the Battery Directive stipulates that at least 50% of a battery must be recycled, which means even in cases where there isn’t a big financial incentive the key components such as wires and plastics will be reused where possible.

It’s the power-providing battery cells that are the most difficult parts to recycle, according to Sattar. “The electrolyte is flammable, explosive and highly toxic,” he says. “It's very sensitive to water and forms hydrofluoric acid (HF) on contact with water. These hazards must be dealt with in any recycling process before the rest of the cell components can be recycled.”

Read on to find out more about electric car battery recycling and the latest technology that will make it easier to deal with old and worn-out power packs.

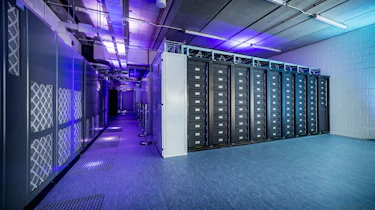

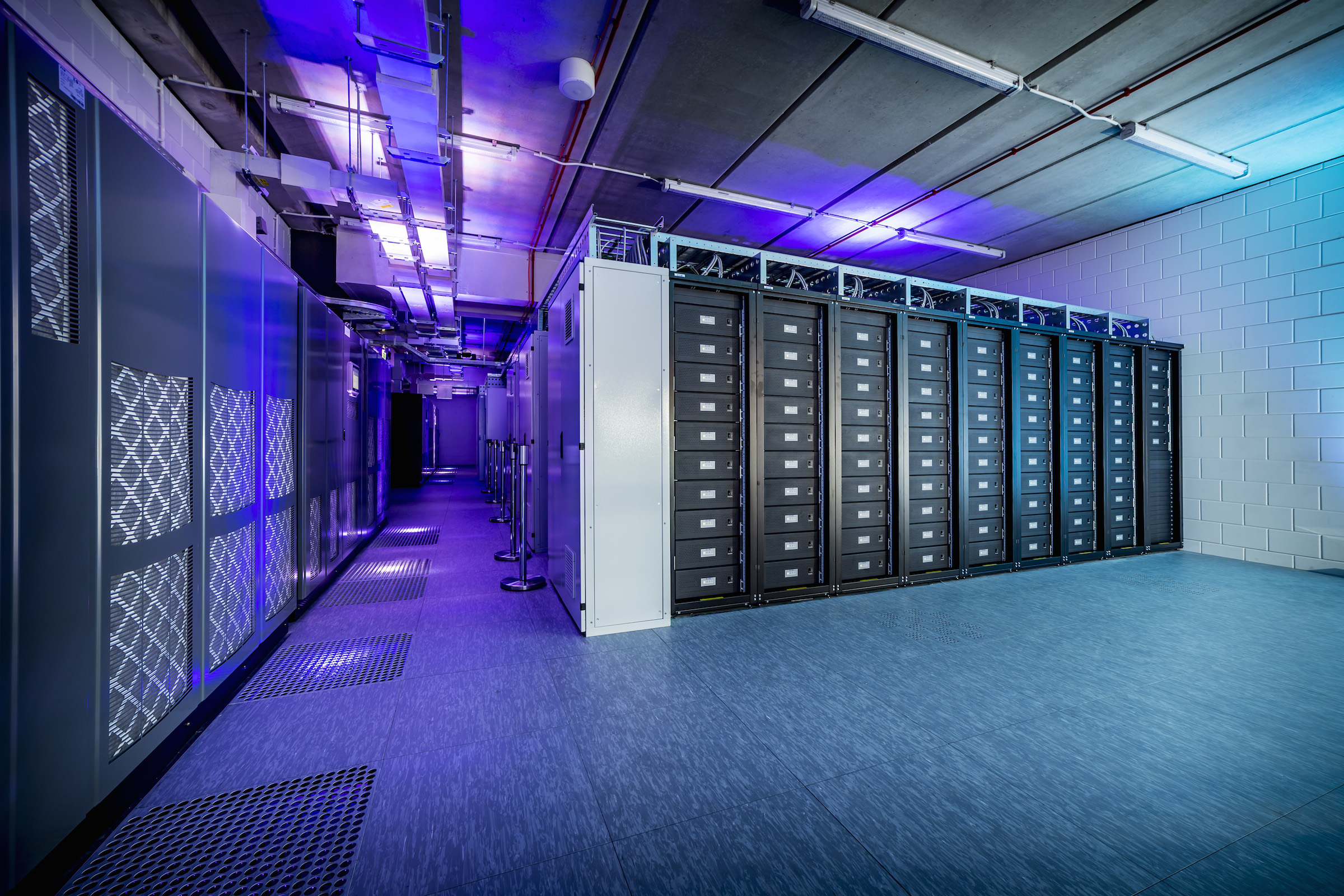

Nissan energy storage

Recycling the materials in used batteries

Batteries for electric cars need to provide a lot of energy in a small package, which requires fairly large quantities of cobalt in lithium-ion batteries. But energy-storage units in buildings don’t need to be so small and lightweight, so it’s commonly argued that it's better to recycle the precious metals of lithium and cobalt for other transport applications.

Advertisement - Article continues below
Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

Cobalt production is a critical issue for battery sustainability and the future of electric mobility. Much of it is mined in the Democratic Republic of Congo, where the process raises serious ecological, ethical and human rights concerns, so reducing dependency on it as demand for batteries rise is one of the greatest challenges.

Dr. Gavin Harper, a Faraday Institution research fellow at the Birmingham Energy Institute’s project on recycling and reuse of lithium-ion batteries (ReLiB), states: “if we face constraints around cobalt, some feel we should focus this precious resource on more demanding applications such as EVs. It may make more economic sense to recycle EV batteries for use in brand-new batteries for cars, rather than using them in a used state in a less demanding application [such as power storage].”

Mercedes agrees with this. The German manufacturer launched a home energy-storage system (above) using batteries from its range of electric cars in April 2017, but the product was axed only a year later, with the company claiming that “it’s not necessary to have a car battery at home: they don’t move, they don’t freeze; it’s overdesigned.” So, for Mercedes at least, the costs didn’t add up.

Advertisement - Article continues below

Nissan, however, is adamant that electric-car battery technology is transferable for home-energy use. A spokesperson stated that Nissan “is committed to operating in the energy services market and is strongly placed to use both new and second-life EV batteries for energy storage in a way that's commercially viable.”

Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

Another huge consideration is the recycling process. Belgium-based company Umicore is one business already offering recycling for lithium-ion batteries. It reclaims the valuable metals using a combination of pyro and hydro-metallurgy, recycling around 35,000 EV batteries a year in its pilot plant. According to a company spokesperson, Umicore “can easily scale up its recycling activities when the market grows, which we expect to happen in 2025". Even better, metals are infinitely recyclable, so they can be reclaimed from used batteries and to produce new batteries that are as good as any other.

In November 2020, Finnish company Fortum announced the development of "a new and efficient way" to recycle lithium from rechargeable batteries. Before the development, the firm was already achieving a claimed recycling rate of over 80% for lithium-ion battery materials, thanks to a low-CO2 hydrometallurgical recycling process to recover cobalt, nickel and manganese.

Advertisement - Article continues below

In January 2022, waste-management firm Veolia announced its first battery recycling plant in the UK, in Minworth in the West Midlands. It aims to have the capacity to process 20% of the country's end-of-life electric-car batteries by 2024. Veolia describes the used battery recycling process as 'urban mining' and says it can reduce water consumption and greenhouse-gas emissions by up to 50% compared to extracting fresh raw materials and building brand-new batteries.

Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

Finally, Tesla plans to recycle its batteries to the point where it hopes the reclaimed materials will negate the need to mine new metals. The company's former CTO, JB Straubel, said that Tesla is “developing more processes on how to improve battery recycling to get more of the active materials back. Ultimately, what we want is a closed loop that reuses the same recycled materials". Straubel has even since moved on to set up his own company to help solve the issue of battery recycling.

Second life: batteries as power storage for homes, industry and energy generation

Used electric-car batteries can live on in their complete state as power storage for homes and industry. For example, in April 2021 Volvo reaffirmed its commitment to becoming a "circular business" by 2040, creating a "closed loop'' that'll see all the materials in its cars recycled.

Advertisement - Article continues below

As part of this, the Swedish carmaker announced a project to explore the potential of second-life applications for its high-voltage batteries. One element of this is a collaboration with BatteryLoop that sees batteries from electrified Volvo cars used for a solar energy storage system. This powers charging points for electrified cars and electric bikes at Swedish healthcare company Essity’s premises near Gothenburg.

In another project, Volvo, cleantech company Comsys and energy firm Fortum are running a pilot that aims to increase supply flexibility at a hydropower facility in Sweden. This sees battery packs from Volvo plug-in hybrids used as a stationary energy storage unit, helping to supply so-called "fast-balancing" services to the power system.

Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

Volvo says these and other projects investigate how batteries age when used in second-life applications that have significantly less aggressive cycling compared to in-car use. They're also allowing the company to learn about the commercial value of batteries after use in cars and identify potential future revenue streams.

Advertisement - Article continues below

"We want to find out how long the batteries will last in these applications; that's why we're doing these tests, to really see what are the financial and sustainability benefits." Volvo's head of sustainability Anders Karrberg told DrivingElectric. Interestingly, Volvo isn't yet fully convinced that second-life applications are necessarily the most sustainable route to go down with batteries that have come out of hybrid and electric cars.

Karrberg explained: "To make a battery produces about six to eight tonnes of CO2 and also requires a lot of virgin valuable metals. So the battery has a value from a sustainability point of view. But for how long, we really don't know. Extending its lifetime boosts that value, but we want to find out the details of this – and one outcome could actually be that it's better to go for recycling right away, but the jury's still out on that."

Jaguar Land Rover has also developed a portable electric-car charger by repurposing battery packs from I-Pace prototypes and development models. The unit, called the Off-Grid Battery Energy Storage System (ESS), boasts a capacity of 125kWh, has Type 2 connectors and comes with integrated solar panels for recharging in sunnier climates. Eventually, the ESS will be available for commercial hire, offering zero-emissions energy when access to mains electricity is limited or unavailable.

Advertisement - Article continues below
Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

Elsewhere, Nissan already uses second-life batteries from the Leaf for static energy storage in industrial and domestic installations, and offers an off-the-shelf home or commercial energy storage unit, called xStorage. A rival to the Tesla Powerwall, Nissan’s is different in that you can choose new or secondhand batteries. A spokesperson for the Japanese carmaker has stated that Nissan “is committed to operating in the energy services market and is strongly placed to use both new and second-life EV batteries for energy storage in a way that's commercially viable.”

Honda has also announced plans for its used hybrid and electric-car batteries. Working with Societe Nouvelle d’Affinage des Metaux (SNAM), the European arm of the Japanese brand has announced it'll collect and recycle batteries, either for second-life use or the extraction of valuable elements.

Elsewhere, BMW announced in October 2020 that it would partner with Off Grid Energy to create "a sustainable second-life solution" for batteries coming out of end-of-life BMW and MINI electric and hybrid models. BMW will supply the company with battery modules that'll be used to manufacture mobile power units. The first prototype is now up and running, powered by lithium-ion modules taken from a MINI Electric development car. It has a 40kWh capacity delivering a 7.2kW fast charge was used at BMW and MINI UK events over the course of late 2020 and early 2021.

Advertisement - Article continues below
Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

BMW and Off Grid Energy say that as more modules become available over time, systems will be built with a capacity of up to 180kWh, able to provide multiple charges at rates of up to 50kW. The two firms claim that when these units are used to displace conventional ways of generating temporary power, the battery modules will at least double the CO2 reduction achieved in their original use in the car.

In October 2020, Renault threw its hat into the battery-recycling ring with its SmartHubs project: an energy system in West Sussex comprising 1,000 second-life electric-car batteries that's set to "provide cleaner, lower-cost energy for use in social housing, transport, infrastructure, private homes and local businesses", the company claims. Renault says the system helps to "balance the electricity network", charging and discharging as required, with the ability to store enough energy to power 1,700 homes for a day. A similar, more powerful system has been installed at Renault's George Besse factory in Douai, France.

Mercedes power storage

New and improved battery technology

One hope for the future is the sodium-ion battery, which operates in much the same way as a lithium-ion unit and is similarly recyclable. Sodium is cheaper and far more abundant than lithium, so if sodium-ion batteries can be brought up to the same performance levels as lithium-ion ones, it could be a no-brainer.

Advertisement - Article continues below
Skip advert
Advertisement
Skip advert
Advertisement - Article continues below

Solid-state batteries are another likely battery technology of the future, as they’re much less flammable and potentially even more efficient than current lithium-ion cells. Nissan, the Stellantis Group, Toyota, Mercedes, Ford, Volkswagen and Hyundai are all pursuing this route. But how recyclable are solid-state batteries?

According to Peter Slater, professor of materials chemistry and co-director of the Birmingham Centre for Energy Storage, the recyclability of solid-state batteries "would present different challenges in terms of separating the components. In particular, it's likely that it would need chemical separation routes, such as those being developed through the Faraday Institution’s ‘ReLib’ project."

Volvo's head of traction battery development Ulrik Persson believes that viable solid-state batteries should arrive on the market at some point between 2025 and 2030 – although perhaps initially only in higher-end, more expensive electric cars. "It will make batteries both safer and potentially more potent at the same time. The solvents for the electrolytes in batteries are hazardous materials, so if we can get away from using those that would make the manufacturing process easier."

Ultimately, if the appalling environmental ramifications of putting batteries into landfill aren’t persuasive enough, the cold reality is that the metals they contain – regardless of the cell technology involved – are too valuable to waste. In the end, there'll be many and varied answers to the question of “what do we do with used electric vehicle batteries?” The good news is that ecological and economic good reason are unanimous on one thing: don't put them in the ground.
